Adss Fiber Cable
22 ADSS-single
Adss Fiber Cable

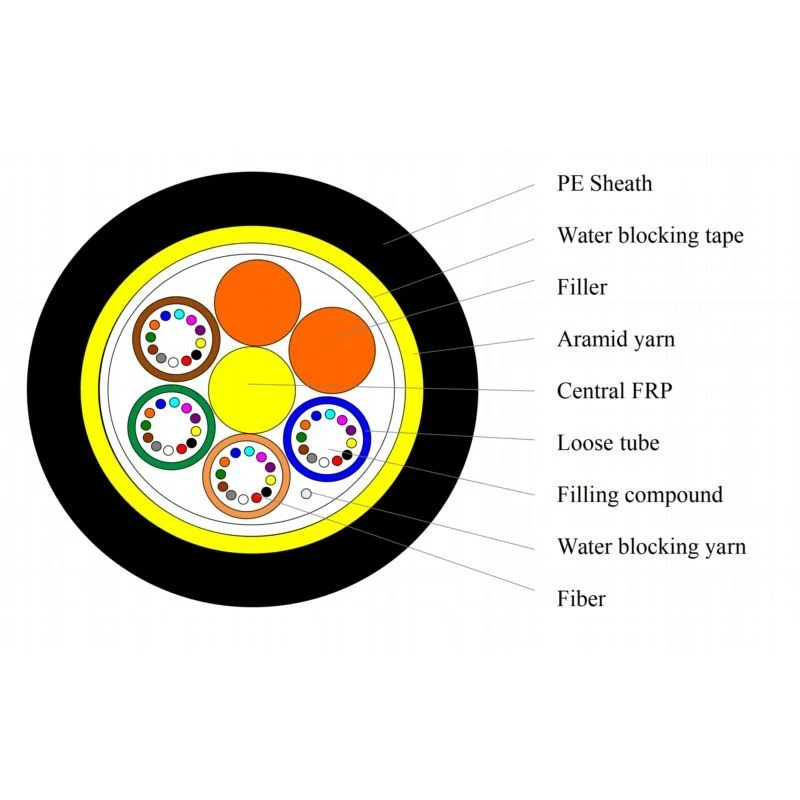

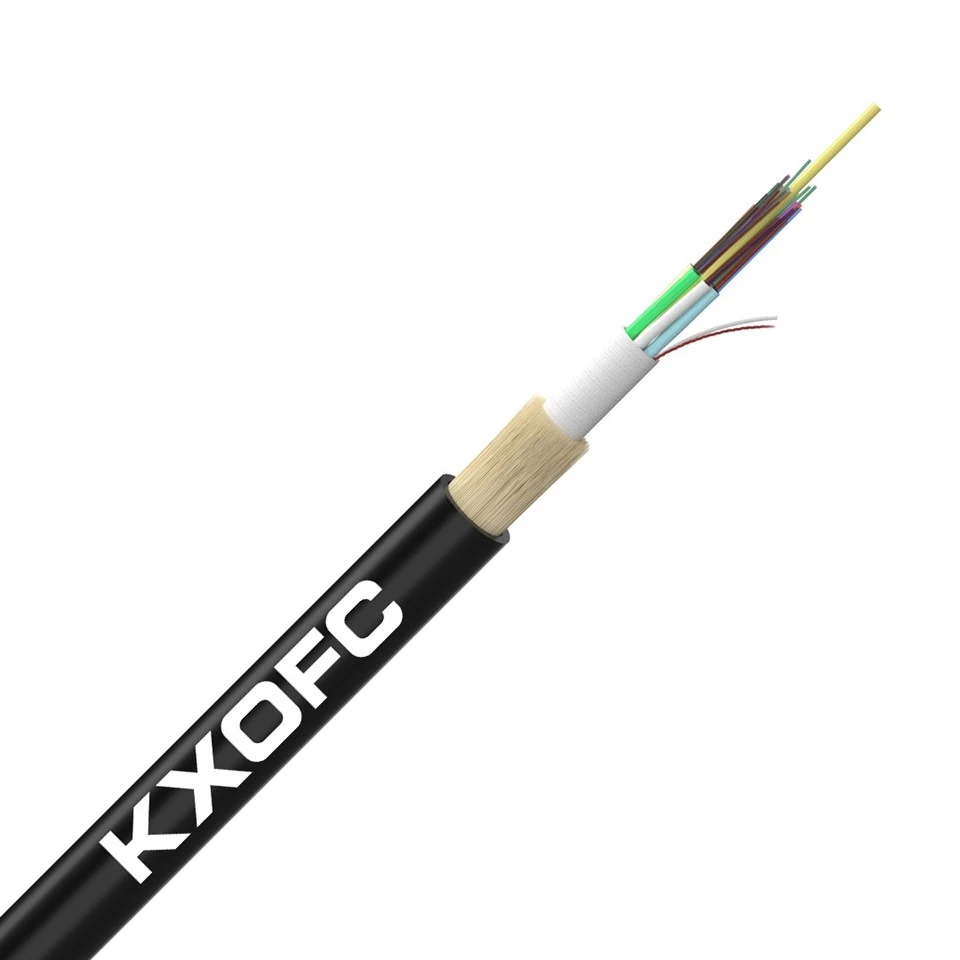

ADSS fiber ntau cable optic Ib lub tsho aerial optical fiber ntau cable, ib lub Jacket ADSS Loj Span 200M txog 500M yog hom tshwj xeeb ntawm Txhua yam -Dielectric Tus Kheej-Txhawb (ADSS) fiber ntau optic cable tsim rau ntev - nrug kev teeb tsa dav hlau, npog qhov ntev li ntawm 200 meters. ADSS cable yog xoob raj tso tseg. Fibers, 250um, yog muab tso rau hauv ib lub raj xoob ua los ntawm cov yas siab modulus. Cov raj tau ntim nrog dej- tiv thaiv kev sib xyaw. Cov hlab (thiab cov fillers) raug tso tseg nyob ib ncig ntawm FRP (Fiber Reinforced Plastic) uas tsis yog -cov tswvcuab hauv nruab nrab ntawm lub zog rau hauv cov tub ntxhais sib txuas thiab cov hlua txuas. ADSS fiber cable yog them nrog nyias PE (polyethylene) puab sheath. Tom qab stranded txheej ntawm aramid yarns yog siv nyob rau hauv lub puab sheath raws li lub zog tswv cuab, lub cable yog ua tiav nrog PE los yog AT (anti{17}} taug qab) txheej sheath.
Hauj lwm lawm
Kev tsis
peb lub tuam txhab
Nta
- Kev ua tau zoo AT, qhov siab tshaj plaws inductive ntawm qhov chaw ua haujlwm ntawm AT sheath tuaj yeem ncav cuag 25KV.
- Lub teeb yuag thiab me me txoj kab uas hla txo cov load tshwm sim los ntawm cov dej khov thiab cua thiab cov khoom thauj ntawm cov yees thiab cov khoom siv rov qab.
- Qhov ntev ntev thiab qhov loj tshaj plaws yog tshaj 500m.
- Kev ua tau zoo ntawm tensile lub zog thiab kub.
Environmental yam ntxwv
• Kev thauj mus los / cia kub: -40℃rau +60 degree
Kev xa khoom ntev
• Txheem reel ntev: 2km / nruas; lwm qhov ntev kuj muaj.
Lub sij hawm xa tuaj
Lub sij hawm xa tuaj rau cov khoom me me yog 7-15 hnub, rau cov khoom loj nws yog 15-25 hnub. Yog tias muaj kev xav tau sai, thov qhia rau peb ua ntej, thiab peb yuav sim peb qhov zoo tshaj plaws los koom tes thaum tsim khoom.
tus kheej hom
Ntim thiab nkoj
Tswv yim
** Nta thiab daim ntawv thov ntawm ADSS Overhead Optical Cable **
** tsis yog{0}}hlau aerial optical cable**
ADSS, Txhua yam -Dielectric Tus Kheej-Kev txhawb nqa kho qhov muag cable, yog ib qho tshwj xeeb uas tsis yog-hlau aerial optical cable dav siv rau kev sib txuas lus hluav taws xob thiab hluav taws xob hauv kev sib txuas lus. Ua los ntawm tag nrho cov ntaub ntawv insulating dielectric, ADSS cable tsis muaj hlau conductor sab hauv, yog li nws tsis txhob cuam tshuam tam sim no nyob rau hauv siab -voltage fais fab kab yam xyuam xim.
Peb Qhov Zoo Ntawm ADSS:
** Aramid yarn **: Nws tso siab rau cov xov paj hauv aramid kom dais tag nrho lub zog tensile quab yuam, tsis xav tau cov hlau dai ntxiv thaum lub sij hawm ncej mounting.
**Span hom**: Muab faib los ntawm kev ncua deb, cov qauv ADSS feem ntau suav nrog 100m, 200m thiab 300m span hom rau ntau lub sijhawm sib txawv.
**PE sheath**: Nws cov sheath sab nrauv txais cov khoom siv los tiv thaiv - kev laus los tiv thaiv ultraviolet hluav taws xob thiab sab nraum zoov kub hloov rau 20 xyoo kev pab cuam lub neej.
Kev siv ADSS:
** Haum siab -voltage corridor scenarios**: Piv nrog rau cov kab dav hlau dav hlau, ADSS haum siab -voltage corridor scenarios zoo kawg nkaus. Nws yog txoj kab uas nyiam tshaj plaws rau kev sib txuas lus ntse hluav taws xob, kev sib txuas lus nyob deb nroog thiab cov kav dej ntawm txoj kev - kev siv network dawb thoob teb chaws.
Cim npe nrov: Tuam Tshoj adss fiber ntau cable manufacturers, lwm tus neeg, Hoobkas
Cov yam ntxwv
|
Fiber suav |
12~144 |
|
Span |
200m~500m |
|
Loose Diameter |
2.1 hli |
|
Loose Khoom |
PBT (Polybutylene Terephthalate) |
|
Central Strength Member |
FRP |
|
Strength Member |
Aramid xov paj |
|
Outer Jacket Khoom |
HDPE |
|
Nominal Outer Dimensions |
13.0mm ~ 18.0 hli (± 0.3) |
|
Lub zog muaj zog (Long-Term /Short-Term) |
3000N/8000N |
|
Crush Resistance (Long-Term /Short-Term) |
300 N / 100 hli 1000 N / 100 hli |
|
Yam tsawg kawg nkaus Khoov Radius (Static / Dynamic) |
10 x OD / 20 x OD |
* Tag nrho saum toj no qhov loj me me tuaj yeem kho tau.
